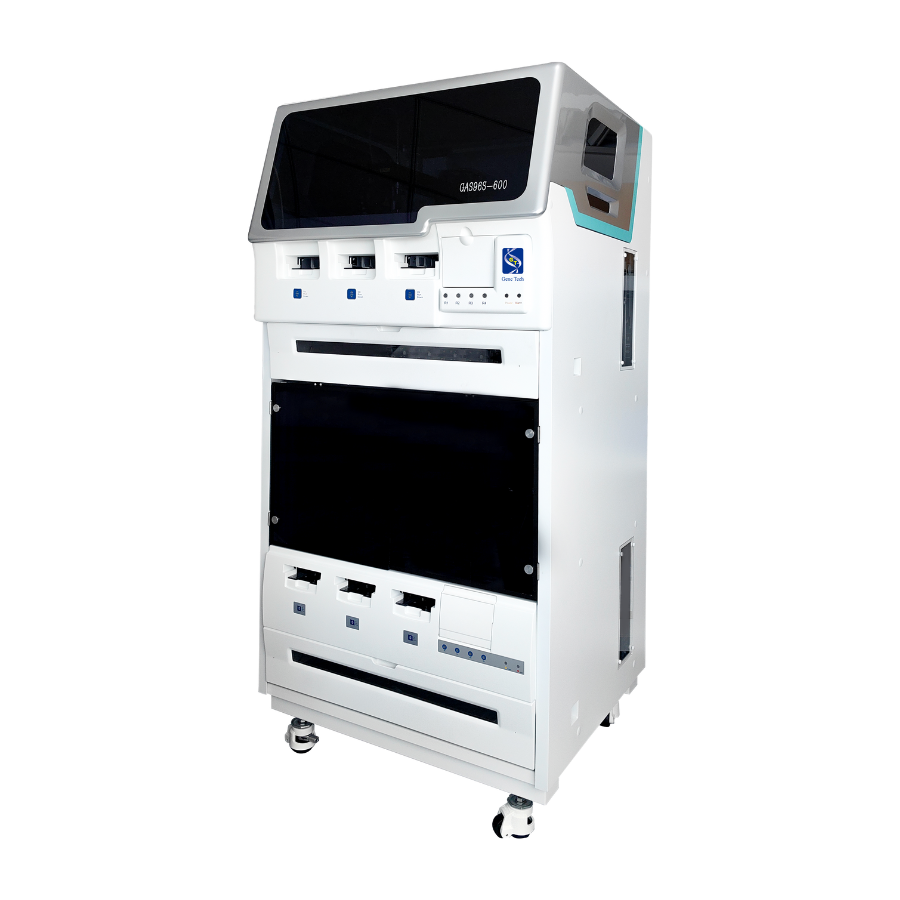

Automated Immunohistochemistry Stainer GAS96S-600
GAS96S-600Multi-purpose One-click Operation Environmental friendly

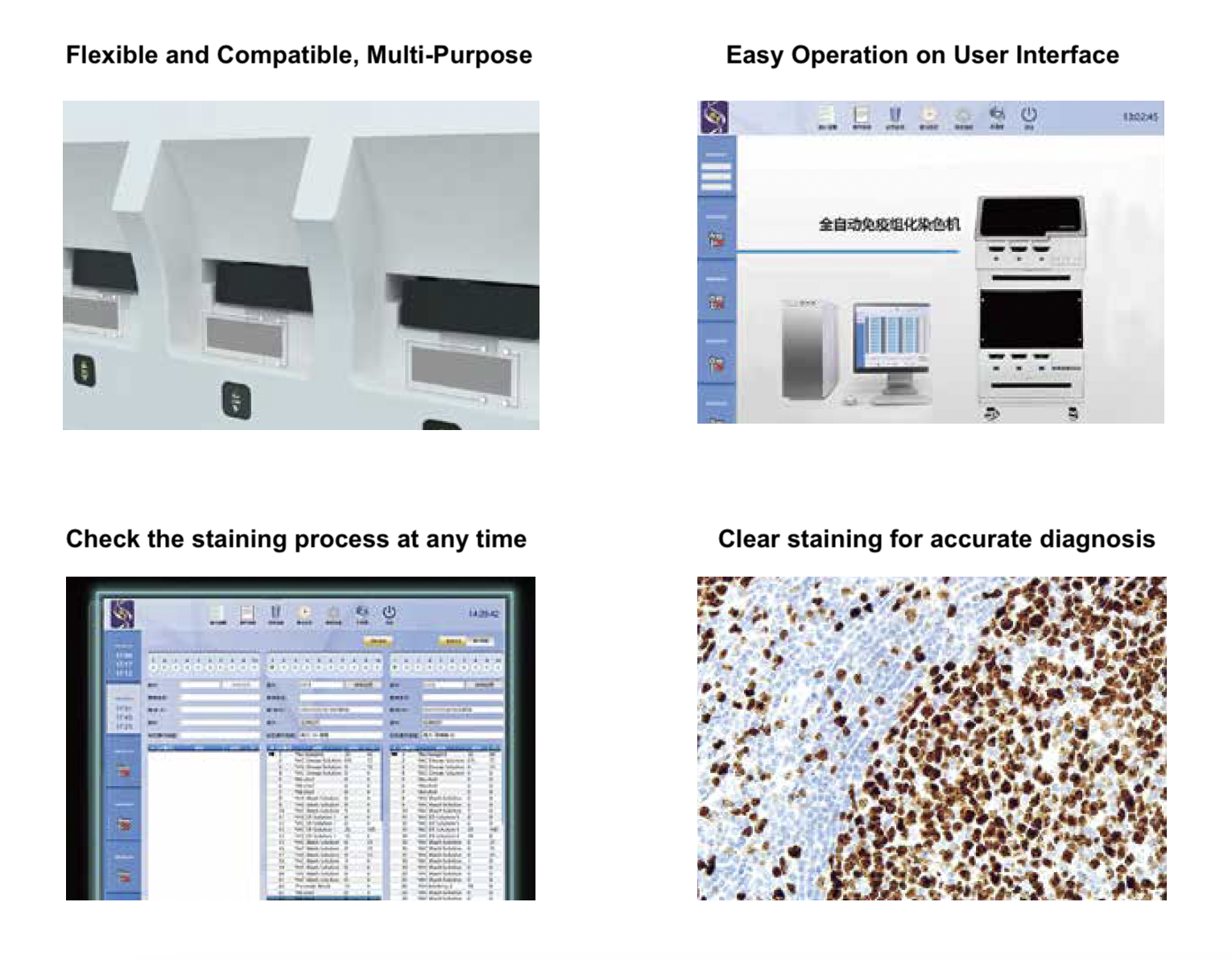

Flexible and compatible, multi-purpose (Immunohistochemistry, multiple staining, in situ hybridization); high throughput of 60 sections; easy-to-operate user interface; delayed start by appointment; one computer can manage multiple stainers at the same time. View the staining process and fill reagents at any time; efficient cleaning to avoid contamination; environmentally friendly design with separate discharge of very small amount of hazardous waste liquid and non-toxic waste liquid. Bi-directional LIS system data synchronization transmission; can be connected to HIS system to save cases.
Introduction
Features
A Key Features
Reagent Scan
Primary antibody: no limitation
Secondary antibody: standard enhanced secondary antibody system
Multiple stainers can be managed from one computer at the same time
B Superior Features
Delayed start by appointment
Addition of large volumes of reagents at any time (before/during the run)
Efficient cleaning to avoid contamination
Environmentally friendly design, very small amounts of hazardous and non-hazardous waste liquids are discharged separately.
Bi-directional LIS data synchronization, HIS connection possible
Permanent storage of cases
Parameters
Product Name: Automated Immunohistochemistry Stainer
Model: GAS96S-600
Staining: Immunohistochemistry, in situ hybridization (EBER), multiple staining (double staining)
Applicable Specimens: FFPE, frozen sections, cell smears, etc.
Operating Temperature: Room temperature to 102℃.
Throughput: 60 slides (6-row independent operation)
Reagent Capacity: 72pcs
Reagent Dosage: Multiple sample dosage
Product Specifications: Vertical L*W*H=830mm*860mm*1740mm
Voltage Requirement: 220v±10%
Power Supply Frequency: 50Hz±1%.
Power: 1200VA
