Automated Immunohistochemistry Stainer GAS96S
GAS96SImmunohistochemistry In situ hybridization Multiple staining
Flexible and compatible, multi-purpose; high throughput of 30 sections; easy-to-operate user interface; delayed start by appointment; one computer can manage multiple stainers at the same time. View the staining process and fill reagents at any time; efficient cleaning to avoid contamination; environmentally friendly design with separate discharge of very small amount of hazardous waste liquid and non-toxic waste liquid. Bi-directional LIS system data synchronization transmission; can be connected to HIS system to save cases.
Introduction

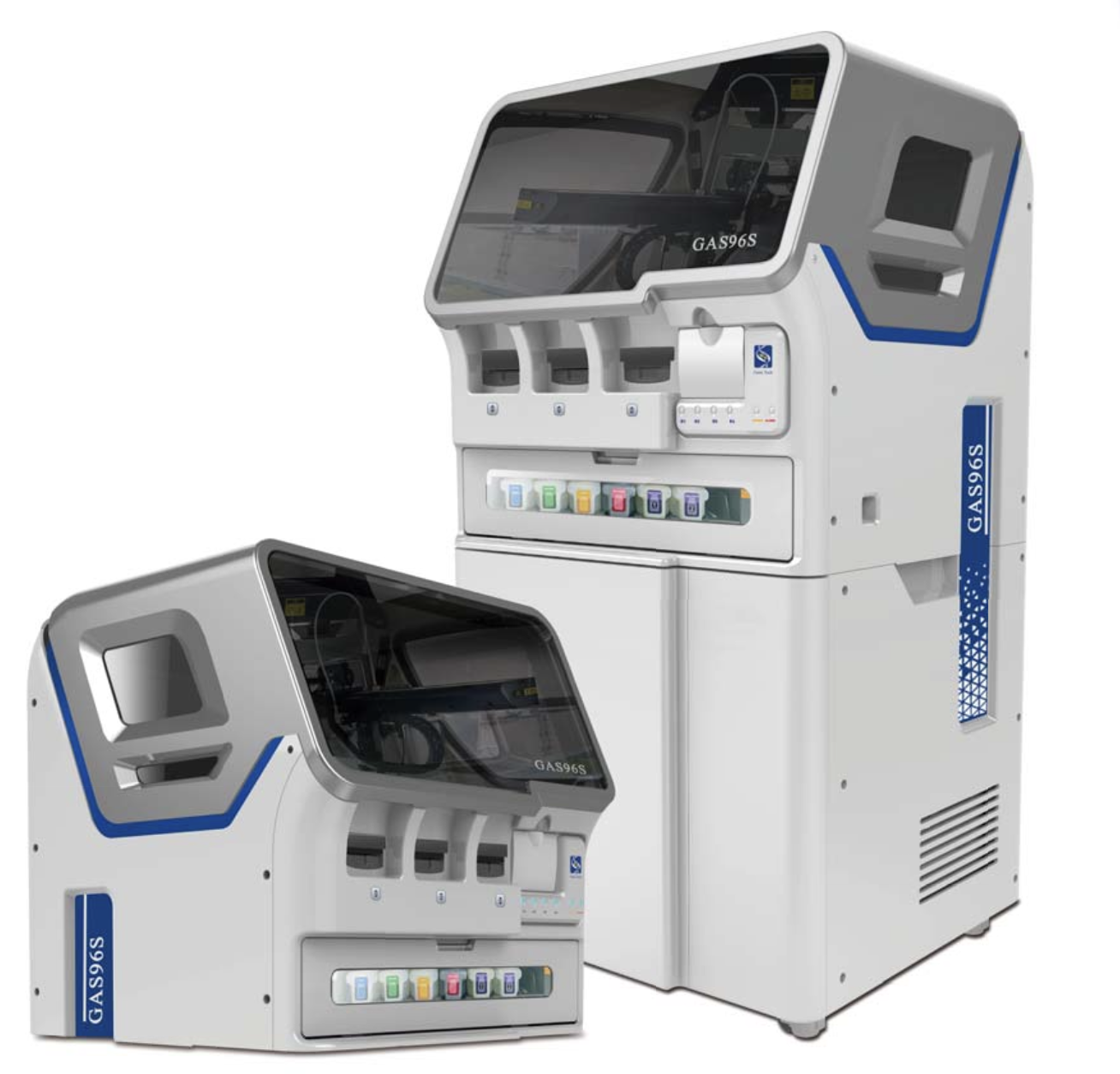

*Two models available
Fully Automated - Labor Saving
No supervision is needed during operation
Simple and Clear
User interface in Chinese, one-click operation
High Efficiency
2.0-2.5 hours minimum
90 sections can be completed in one working day
Quality
Special treatment on the surface of the drip tip of the sampling needle
Reagents are applied sideways
Flexibility
Individual operation and temperature control for each slide holder
Any combination of antigen retrieval
Set up any staining program
View staining progress and results at any time
Innovative Technology
Long-time standby sleep mode, which can prolong the service life of the machine.
Motorized loading platform for smooth loading of large capacity reagent bottles.
Features
A Key Features
Reagent Scan
Primary antibody: no limitation
Secondary antibody: standard enhanced secondary antibody system
Multiple stainers can be managed from one computer at the same time
B Superior Features
Delayed start by appointment
Addition of large volumes of reagents at any time (before/during the run)
Efficient cleaning to avoid contamination
Environmentally friendly design, very small amounts of hazardous and non-hazardous waste liquids are discharged separately.
Bi-directional LIS data synchronization, HIS connection possible
Permanent storage of cases
Parameters
Product Name: Automated Immunohistochemistry Stainer
Model: GAS96S
Staining: Immunohistochemistry, in situ hybridization (EBER), multiple staining (double staining)
Applicable Specimens: FFPE, frozen sections, cell smears, etc.
Operating Temperature: Room temperature to 100℃.
Throughput: 30 slides (3-row independent operation)
Reagent Capacity: 36 pcs (4-row pull-out structure)
Reagent Dosage: Multiple sample dosage
Product Specifications: Vertical: L*W*H=856mm*863mm*1668mm Table-top: L*W*H=856mm*863mm*905mm
Voltage Requirement: 220v±10%
Power Supply Frequency: 50Hz±1%.
Power: 1200VA
